Quantity:

Name

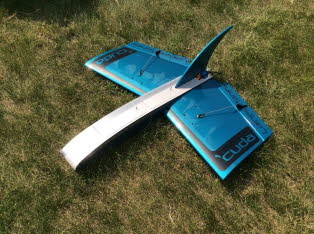

26" Cuda Kit

Price

$85.00

Extended Description


The laser cut, 26” wing span ‘Cuda, with its unique forward swept wing design, fly’s as good as it looks. You will be amazed at the speed, responsiveness and stability of this airplane! This one was made for speed and maneuverability . So far, we have reached speeds over 130mph with no sign of any bad habits. Flying 130mph with a 26” aircraft that has the strength and ability to make a high G “U-turn” at full speed WILL put a smile on your face. The ‘Cuda is a “go where it’s pointed” type of airplane and thus requires intermediate flying skills.   All CAD work was done by our resident Team Engineer, Joel Dirnberger


Build time:

This kit is an excellent choice for a first time kit builder. The laser cut pieces and digital 3D instructions make assembly fast and easy. Build time varies by your experience level, however, 5-8 hours is a good guideline.

Power systems:
INRUNNER:
High End RC Typhoon 4W
APC 5.25x6.25 prop
Castle Creations Phoenix Edge Lite 50 ESC
MPI 28mm Motor mount
This power system will fly excellent on 3S or 4S with no changes. 3S speed will be around 90mph. 4S will be approx 120mph

OUTRUNNER:
Cobra 2217/8 2300kv
APC 6x4 prop
Castle Creations Phoenix Edge Lite 50A
3S or 4S 2200-4000

Parts Included:

2 Dubro 2/56 quick link control rods
2 Laser cut control horns
4 Rare earth magnets for the hatches
4 Carbon wing spars
2 Brass wing joiner tubes
8/32 blind nuts and machine screws for wing mounting
Inrunner and outrunner mounting option

Parts Required:

Motor (inrunner or outrunner)
Motor mount (X mount for outrunner, clam shell type mount for inrunner)
ESC
Battery (3s or 4s 2200 - 4000)
2 19G MG Servos
Propeller
Covering 1-2 rolls
Wood glue (Titebond III and or med CA)
Balls of steel for the maiden flight.

Name

35" Cuda Kit

Price

$90.00

Brief Description

The laser cut 35” wing span ‘Cuda is the “big brother” to the 26” version. With its unique forward swept wing design, it will turn heads at every flying event. We have pushed the 35” over 120mph so far. It goes exactly where you tell it to, when you tell it to.   The only real difference between the 26” and 35” Cuda is that the roll rate is a bit slower on the 35”.

Quantity:

Name

Para Cuda Add on Kit

Price

$45.00

Brief Description

Winner of the Best New Aircraft award at SEFF 2016. No, you're not losing your mind, this REALLY is a TWIN motored Cuda! 128MPH and some of the most fun flat spins you'll ever do.

Quantity:

Name

26" Cuda Kit

Price

$85.00

Brief Description

We'll make you a deal. You send us money and we'll send you a box of laser cut sticks cut special to build a 26" speed demon. You're going to love it, I promise.

Quantity:
